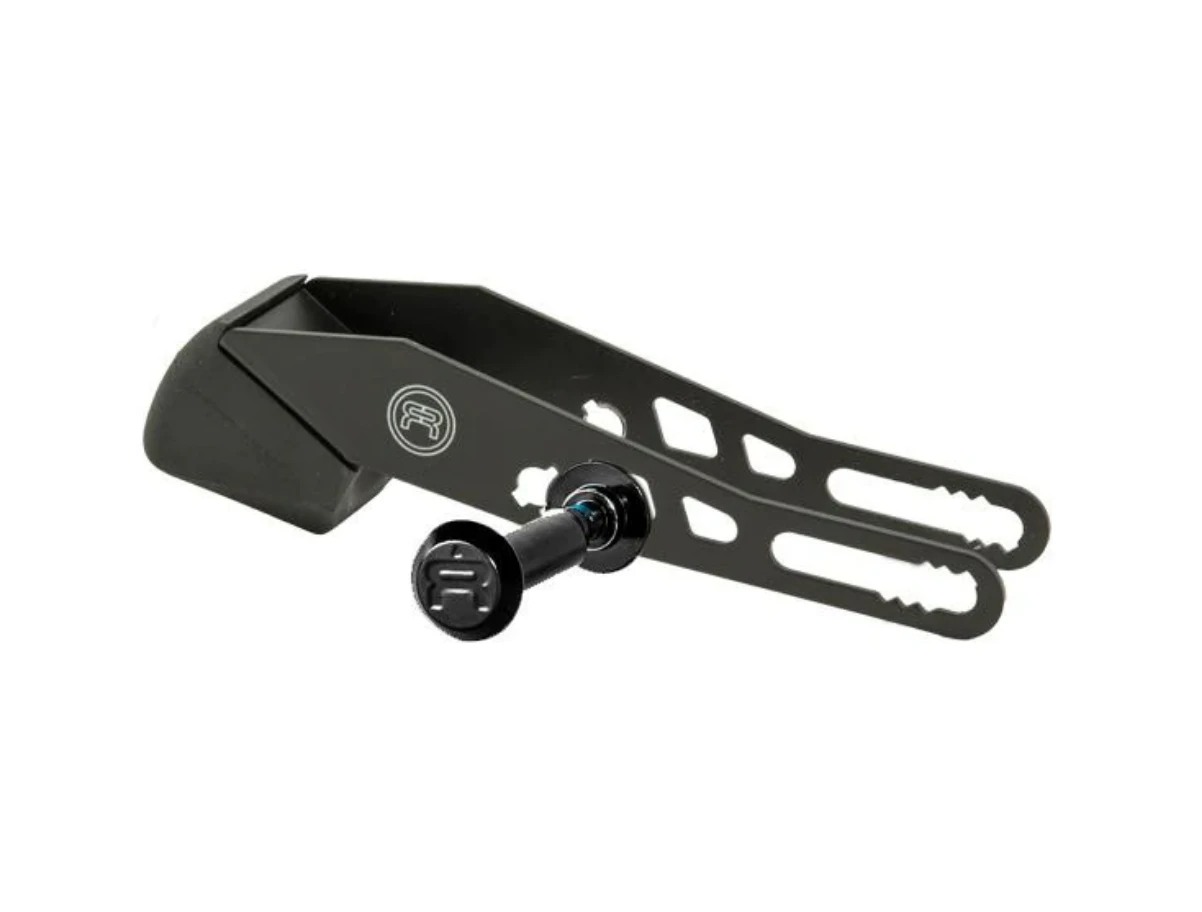

FR 4 Wheel X2R Heel Brake Assembly

Overview:
FR Brake mount to fit FR and Seba X2R 4x80mm rockerable frames.

This brake comes with an additional axle allowing it to fit the rear axles on the rockarable frame to securely fit a rear brake.

These heel brakes can be added to any FR 4 wheel frame that takes a 76mm to 84mm wheel.

They will not fit a 90mm wheel frame.

Can be fitted to either the right or left skate.


How to Install:
Replace rear axles on your frame with the two axles supplied with the brake mount.
The axles that come with the mount are threaded at both ends.
Slide the brake arms along the outside of the frame and use the supplied screws to fasten.
