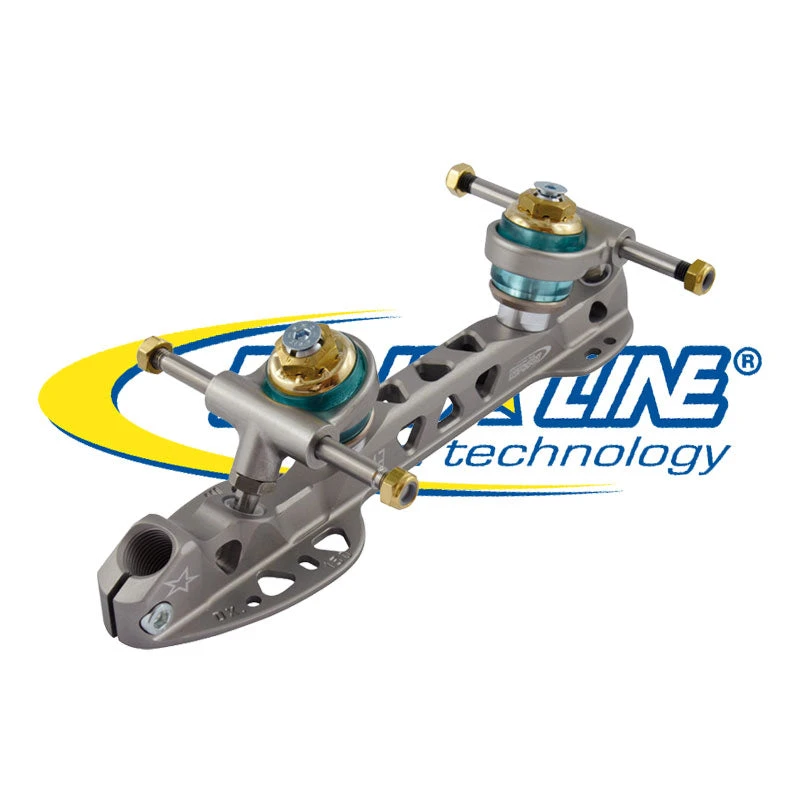

Roll-Line EVO Freeskate Frame

Highly technical frame with crossbrace structure and excellent structural rigidity.

Created by the fusion of the best characteristics of the DB12 and the Matrix plates in collaboration with top athletes and coaches in the world and already appreciated by them.

Differently angled trucks: the greater inclination of the front axle allows the skater to enter spins more easily and with less pressure, the lower inclination of the back axle improves stability and centering during spins.

Redesigned suspensions in elastomer with a double stage compression, providing an excellent base while preparing for jumping and perfect stability when landing (1 spare set included).

Professional wrenches kit included.

Description

• Sizes: 130-135-140-145-150-155-160-165-170-175-180
• Frame: Ergal right and left with lowered design
• Cushions: elastomer with click adjustment
• Included: one additional set in elastomer
• Trucks: aluminium with titanium axles / BACK LEFT aluminium with steel axles
• Differentiated steering angles (18 F / 15B KING PIN ANGLE)

• Toe stops: ambra (super professional)

CHART OF THE SUSPENSION HARDNESSES

CLICK ACTION ADJUSTMENT
Turn the action adjustment nut with the 17 mm wrench in the clockwise direction to make the action more rigid, or in the counterclockwise direction to make it softer.
It is important to check that the pivot is well inserted into the pivot bush while exerting slight pressure.
Adjustment Nut locking screw is only a safe screw, remove it only when you change the suspensions
